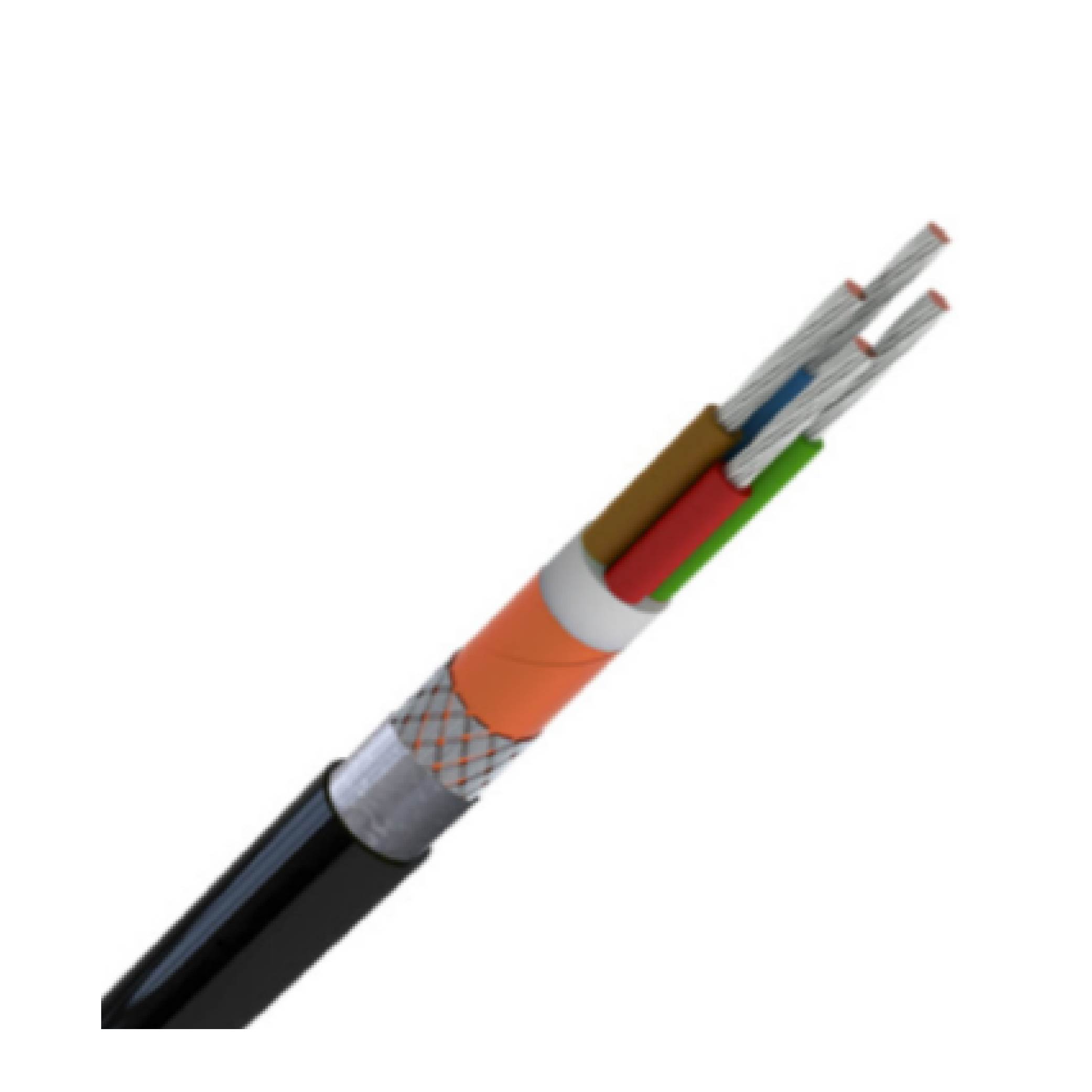

Type: CAN Bus 1x2x0.75mm2 / 2x2x0.75mm2
Application: Designed for CAN-Bus system for ships. According to NMEA 2000 standard for transferring signal at 250 kbit/s.
Share This Items :
Conductor: Tinned stranded annealed copper conductor
Insulation: Foam PE
Indv. Screen: Alum. Foil tape 100% coverage with tinned drain wire
Ovr. Screen: Tinned copper wire braid, coverage >80%
Outer Sheath: Halogen free flame-retardant thermoplastic compound (SHF1)
Capacitance: 40 (pF/m @800-1000MHz)
Impedance: 120 ±12 (Ω@1MHz)
Attenuation: ≤25 (dB/km@1MHz)
