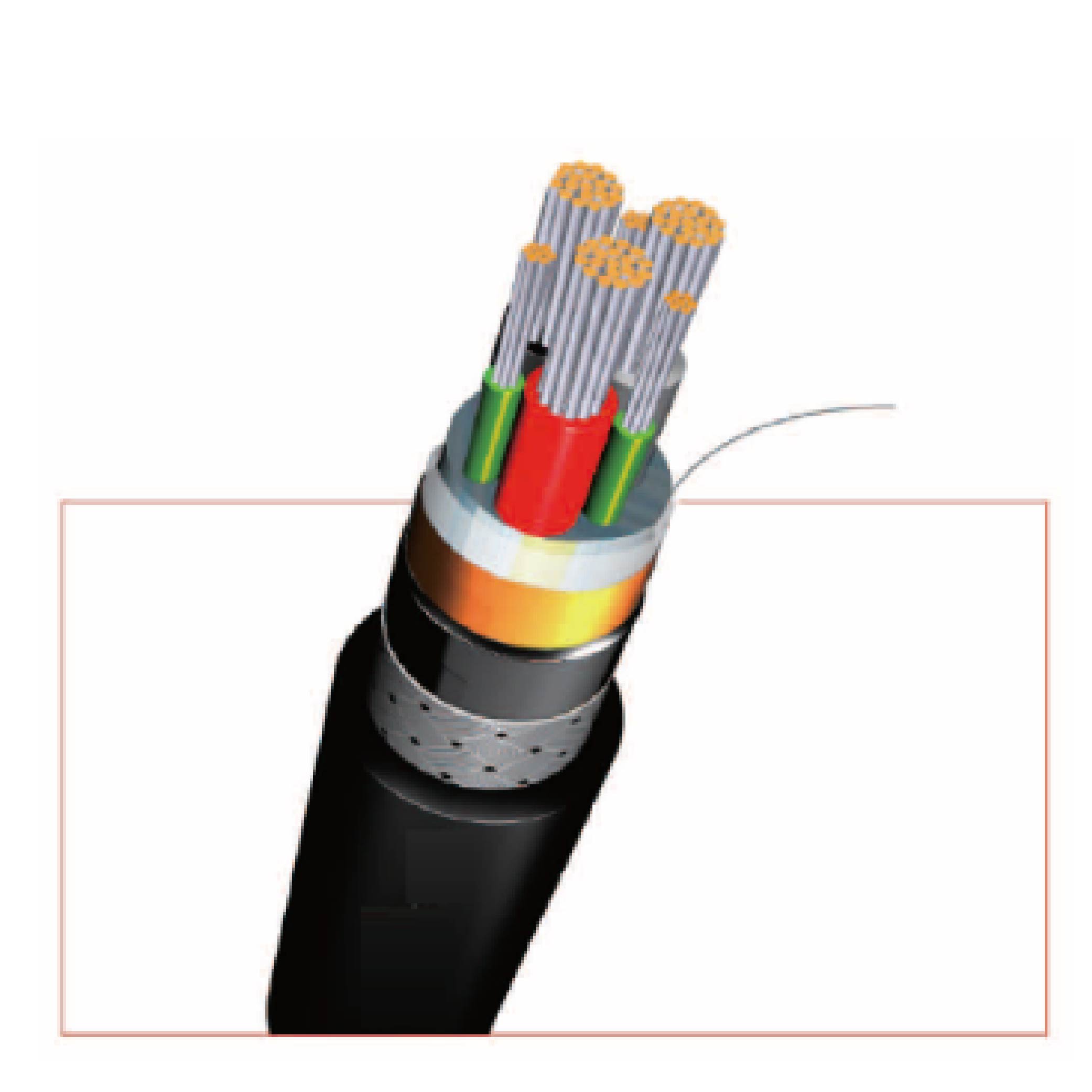

Type: CJPJ85/SC-VFD / CJPJ85/NC-VFD / CJPF86/SC-VFD / CJPF86/NC-VFD
Application: Armoured power and control cable for fixed installation in most area and on open deck in ships and offshore units. Specially designed cables with screen for improved screening properties to address EMI/EMC problems. Also designed to meet requirements for Variable Frequency Drivers (VFD) up to 3kV.
Rated Voltage: 0.6/1kV, 1.8/3kV
Max. Conductor Temperature: 90°C
Share This Items :
| Conductor: | C | Tinned stranded annealed copper conductor, Class 2 or Class5, IEC60228 |
| Insulation: | J | XLPE, IEC60092-360 |
| Inner Sheath: | PJ | Halogen free flame-retardant thermoset compound (SHF2) |
| PF | Halogen free flame-retardant thermoplastic compound (SHF1) | |
| Screen: | Copper tape 100% coverage with tinned drain wire | |
| Armour: | 8 | Tinned copper wire braid |
| Outer Sheath: | 5 | Halogen free flame-retardant thermoset compound (SHF2) |
| 6 | Halogen free flame-retardant thermoplastic compound (SHF1) | |
| SC | Flame retardant IEC60332-1-2 and IEC60332-3-22 Cat A | |
| NC | Fire resistant IEC60331-1 |
