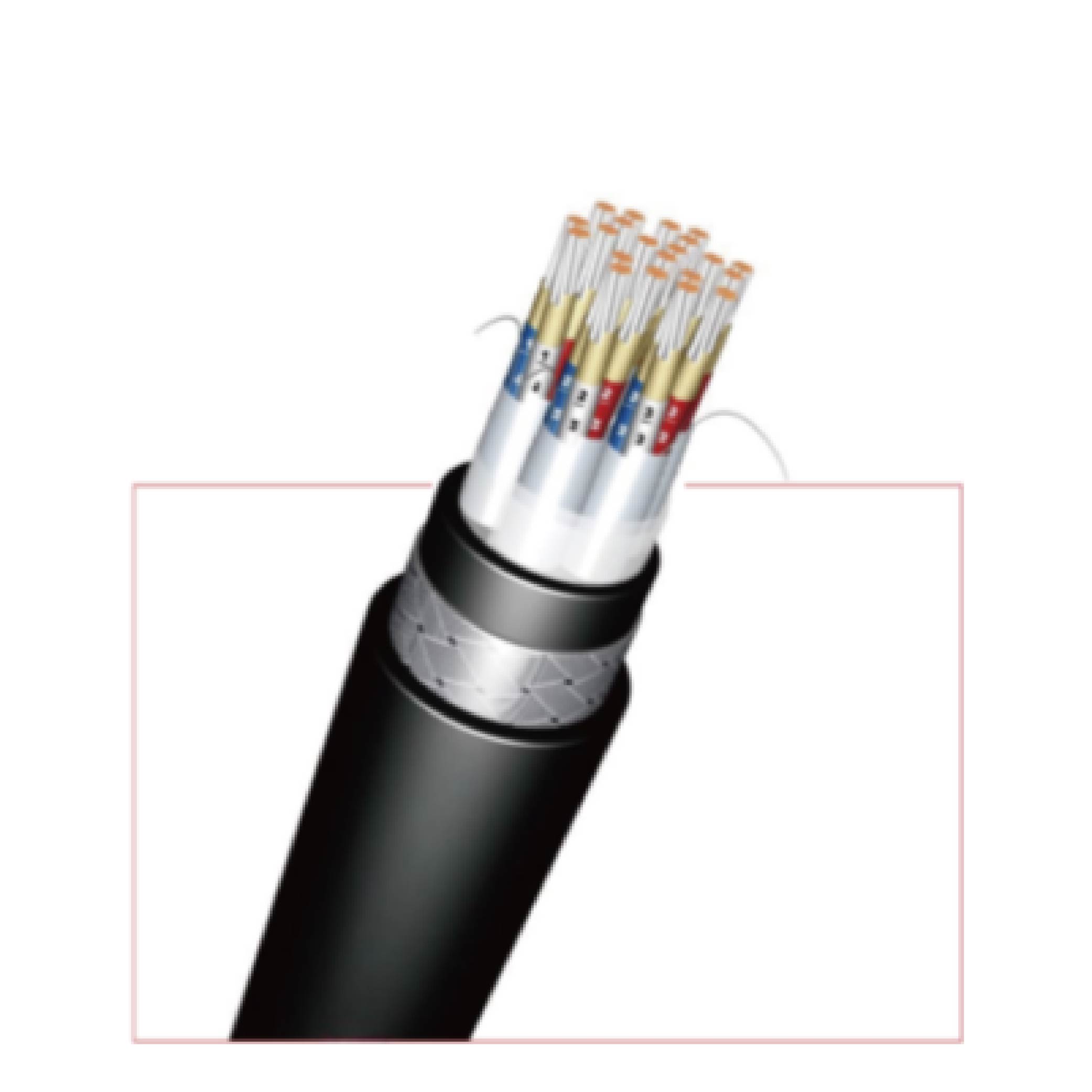

Marine & Offshore Communication Cable With Inner Sheath (Individual Screen) (Fire Resistant)

Product: Marine & Offshore Communication Cable With Inner Sheath (Individual Screen) (Fire Resistant)

Marine & Offshore Communication Cable With Inner Sheath (Individual Screen) (Fire Resistant)

Categories Instrumentation / Telephone Cable, Marine Shipboard Cable

Type: CHJPJP/NC / CHJPJP85/NC / CHJPJP95/NC / CHJPFP/NC / CHJPFP86/NC / CHJPFP96/NC

Application: Non-Armoured / Armoured Instrumentation or Communication cable with individual screened for fixed installation in most area and on open deck in ships and offshore units. Similar to BICI(I), BIOI(I) etc.

Rated Voltage: 150/250V

Max. Conductor Temperature: 90°C

Share This Items :

Conductor:	CH	Tinned stranded annealed copper conductor, Class 2 or Class 5, IEC60228
Insulation:	J	XLPE & Mica glass tape, IEC60092-360
Ovr. Screen:		Alum. Foil tape 100% coverage with tinned drain wire (Optional)
Inner Sheath:	PJ	Halogen free flame-retardant thermoset compound (SHF2)
	PF	Halogen free flame-retardant thermoplastic compound (SHF1)
Armour:	8	Tinned copper wire braid
	9	Galvanised steel wire braid
Outer Sheath:	5	Halogen free flame-retardant thermoset compound (SHF2)
	6	Halogen free flame-retardant thermoplastic compound (SHF1)
	NC	Fire resistant IEC60331-1
